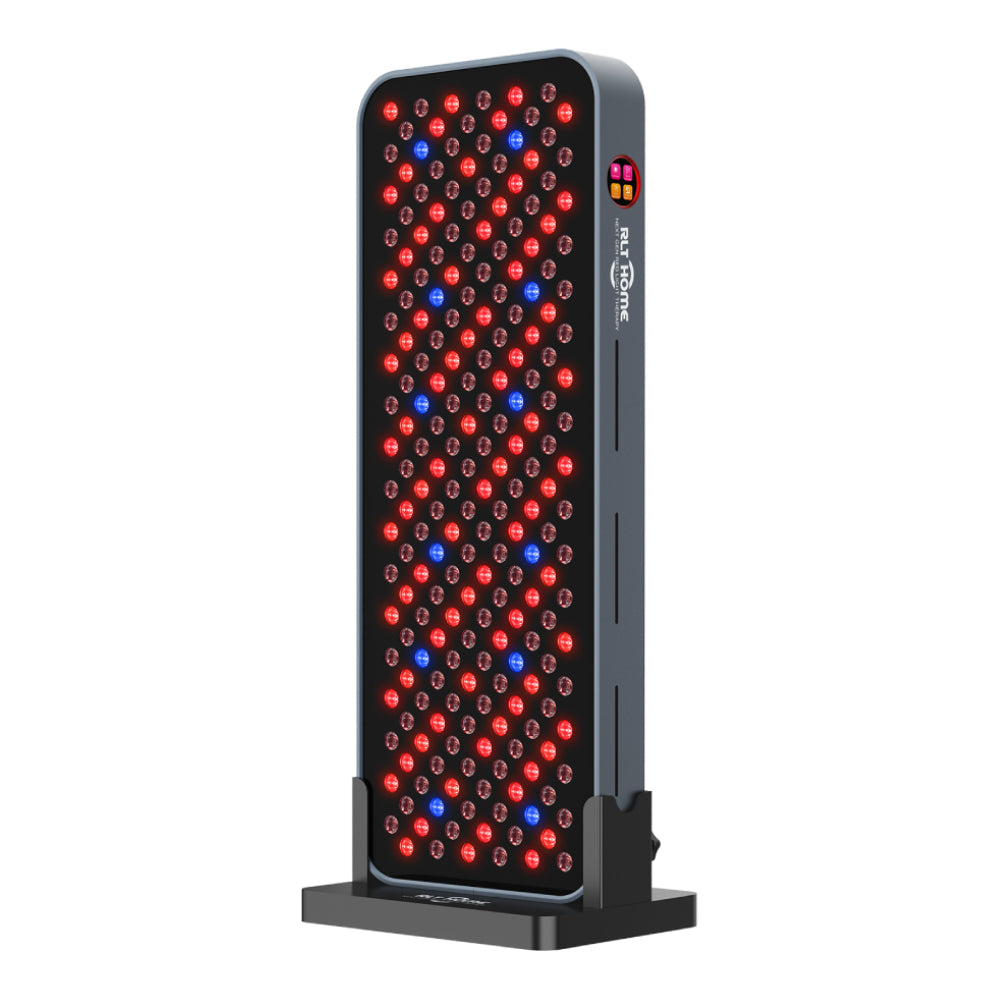

Total Spectrum COMPACT Targeted Red Light Therapy Panel — 216 LEDs, 7 Wavelengths
The Total Spectrum COMPACT is the mid-size panel in RLT Home's line — tall enough to cover the back, shoulders, or legs from one position, slim enough to live in a bedroom or home gym. Every session layers seven wavelengths, from surface-level blue light through visible red to deep 1064nm near-infrared, with preset modes on the touch panel or remote and a fully adjustable custom mode. No flicker, essentially zero EMF, no apps or subscriptions. Free U.S. shipping and a 3-year warranty.
- Seven wavelengths, blue light through deep near-infrared
- Sized for back, shoulders, hips, and legs
- Preset and custom modes — no apps or subscriptions
- No flicker, essentially zero EMF at use distance
- 3-year warranty and free U.S. shipping
Made with care
Built to last a lifetime
Designed for daily ritual
Quiet by design
Guides & reading
Red light buying guide · Red light therapy: science, skin, and sleep · Red light therapy for athletes
You may also like
Product details
Description
Between the little panel that treats a face and the wall of light that treats a whole body sits the panel most people actually need. The Total Spectrum COMPACT is built for the middle distances — a back that carries the workweek, shoulders that hold tension like a second job, legs after a long run. Tall enough to cover a real stretch of the body in one position, slim enough to live in a bedroom, office, or home gym without redecorating around it.
Like every panel in RLT Home's Total Spectrum line, the COMPACT carries seven wavelengths, chosen after the brand's evaluation of more than 2,600 human-focused studies. Blue light works at the skin's surface. Visible red sits just beneath, where skin renews itself. Near-infrared travels down into muscle and joint tissue, and 1064 nm — the longest wavelength in the array — reaches deepest of all. Where most mid-size panels ask you to pick between skin-level red and deep infrared, the COMPACT simply delivers the whole layered spectrum in every session.
It's also built to be lived with. The LEDs don't flicker. Electromagnetic output measures at essentially zero from normal use distance. The beam is focused so the light lands on you, not the room. And the controls stay out of your way: choose a preset from the touch panel or the wireless remote, or open the custom mode and shape intensity and pulsing to taste. No apps, no subscriptions, no accounts.
The result is a device that fits the shape of an ordinary evening — fifteen unhurried minutes between the workout and the shower, or the last quiet stretch before bed. Not a gadget you make room for; a ritual the room absorbs.
Features & Highlights
- Seven wavelengths in every session — surface-level blue light, visible red, and near-infrared through the deepest-reaching 1064 nm channel
- Sized for the body's middle distances — back, shoulders, hips, and legs covered from a single position
- Evidence-led design — the wavelength blend was selected after RLT Home's review of more than 2,600 human-focused studies
- Preset and custom modes — quick-start programs for skin, recovery, sleep and more, or fine-tune intensity and pulsing across four independent channels
- Engineered for a clean experience — no flicker, essentially zero EMF at recommended use distance
- Touch interface plus wireless remote — no apps, subscriptions, or accounts
Specifications
| Light output | |
|---|---|

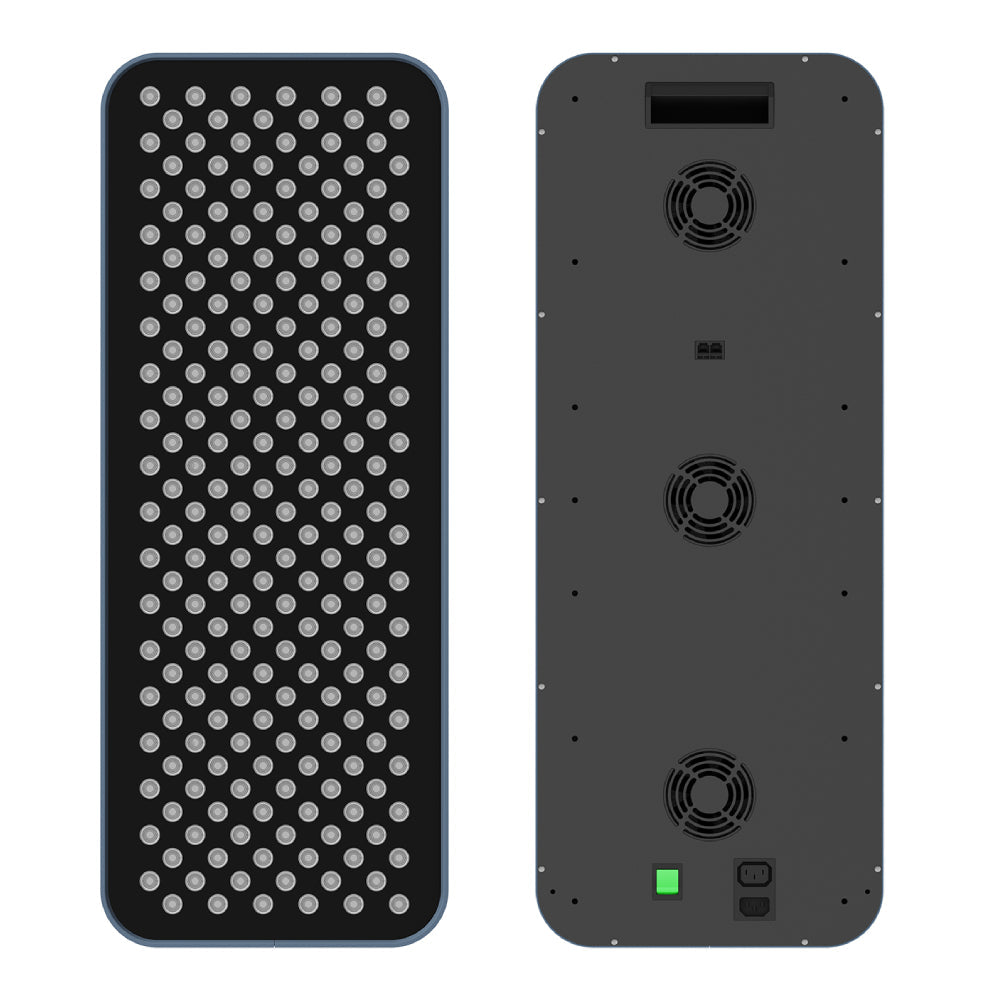

| LEDs | 216 (3535 chips, 100,000-hour lifespan) |
| Wavelengths | 480, 630, 660, 810, 830, 850, 1064 nm |

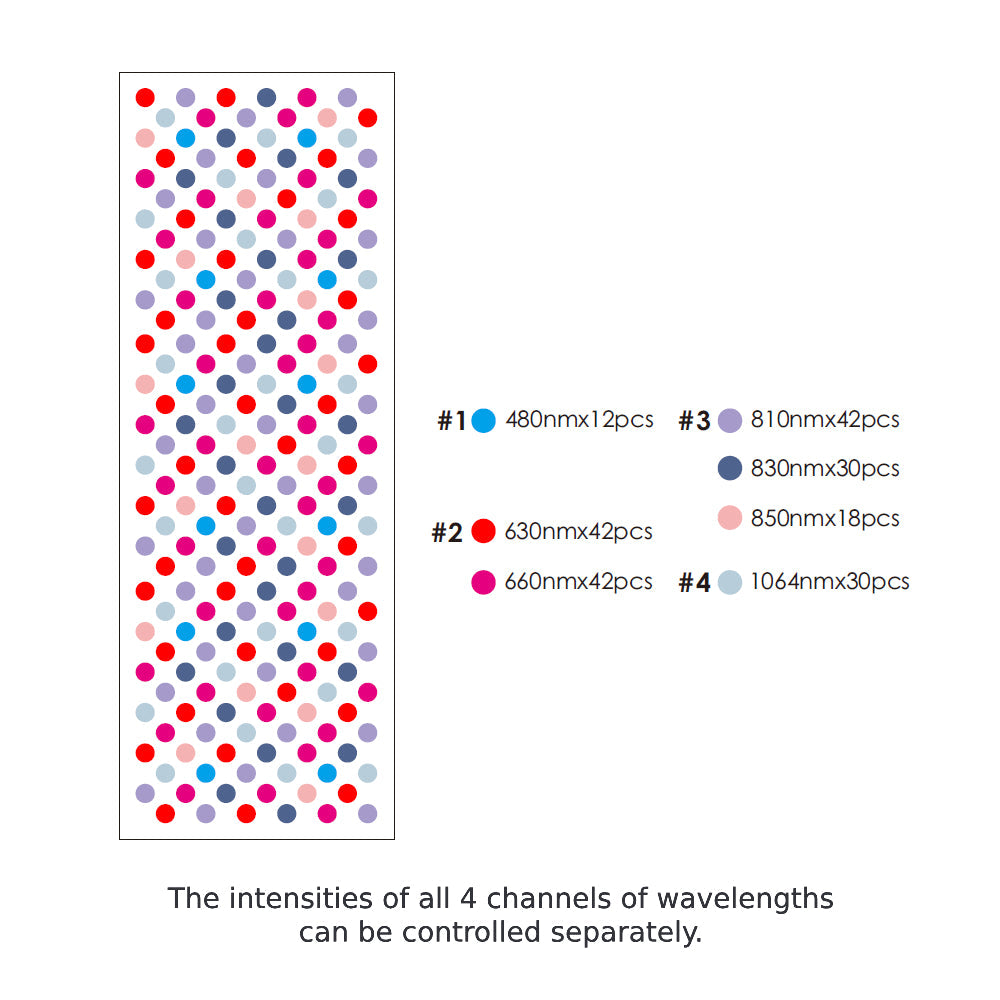

| Wavelength channels | 4 channels — Blue (480), Red (630 + 660), Near-infrared (810 + 830 + 850), Deep NIR (1064) |
| LED split | 6% blue · 38% red · 42% near-infrared · 14% deep NIR (1064 nm) |
| Irradiance | 172 mW/cm² at 8″ (solar power meter) · 99.0 mW/cm² at 6″ (spectrometer) |
| Beam angle | 30° |
| Pulsing | 0–5,000 Hz, adjustable per channel |
| Flicker | None |
| EMF | ≈0.0 μT from 6 inches onward |
| Modes & control | |
| Modes | 9 preset performance modes + custom mode (per-channel intensity and pulsing) |
| Controls | Touch interface + wireless remote |
| Build & dimensions | |

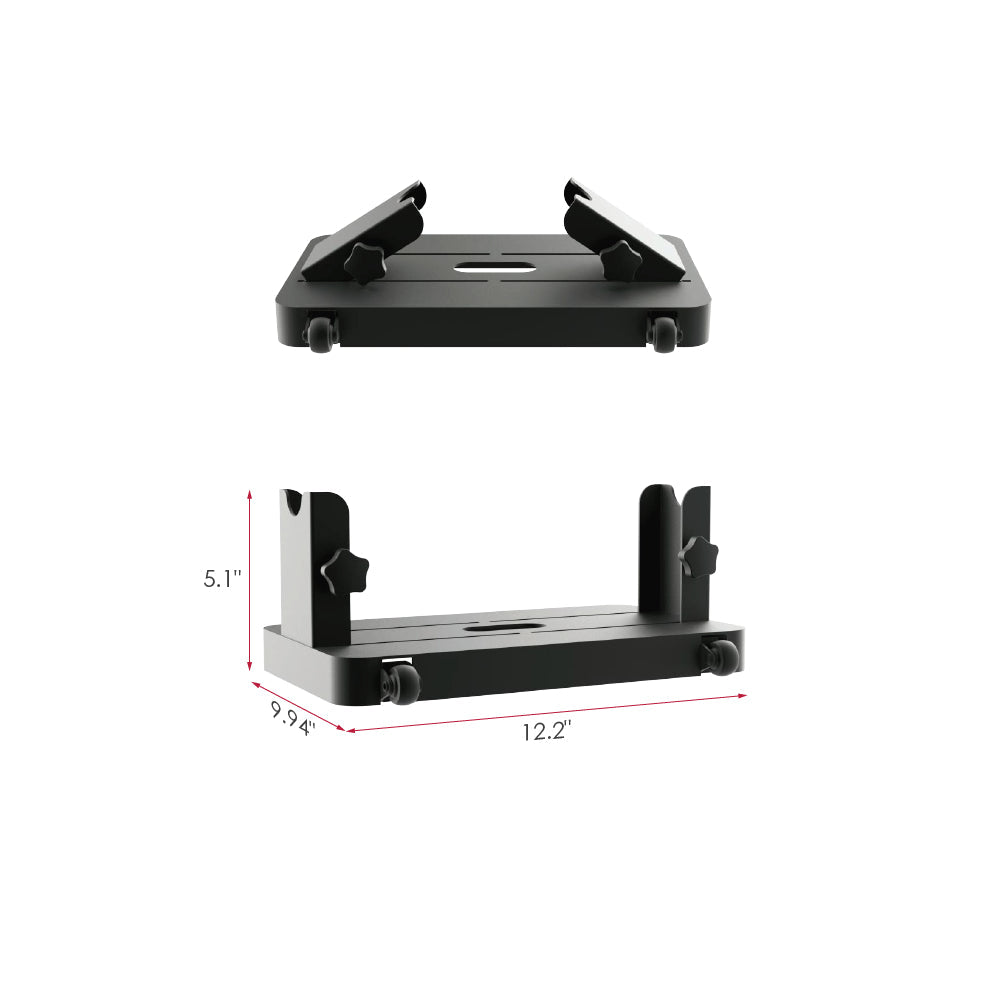

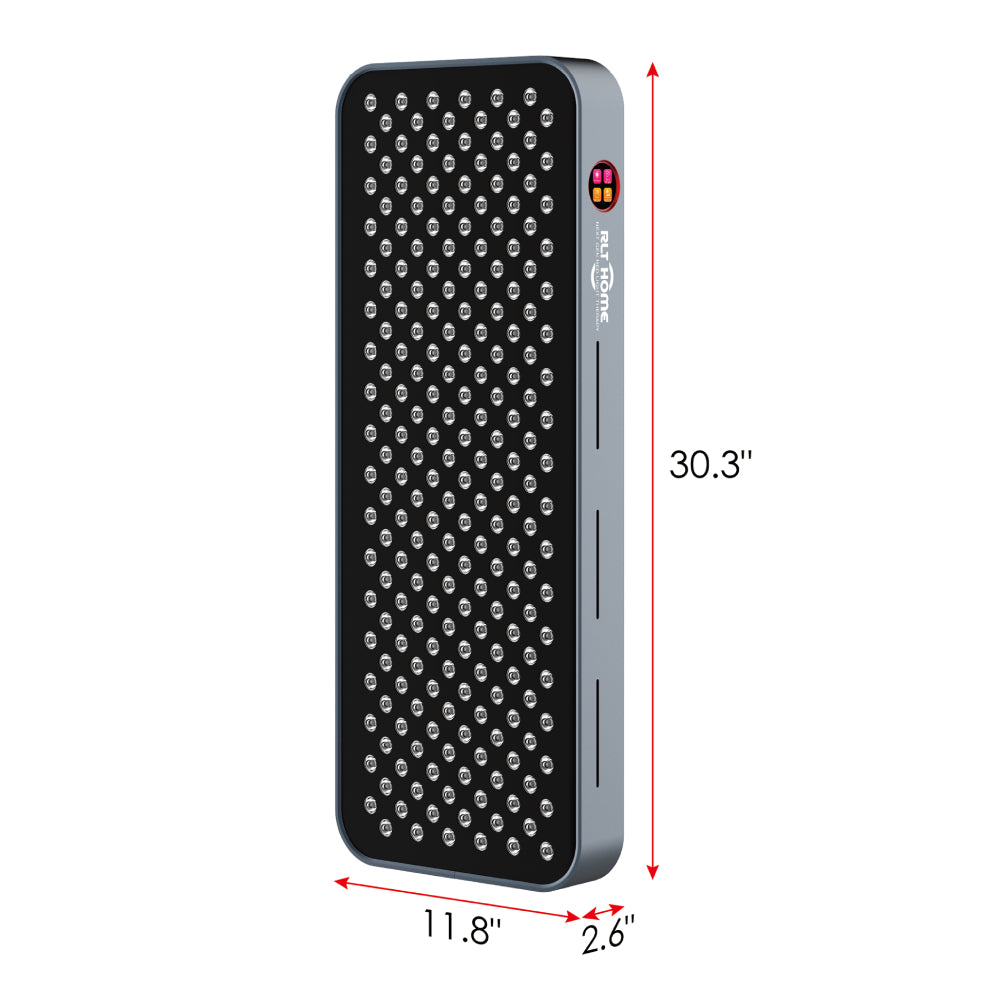

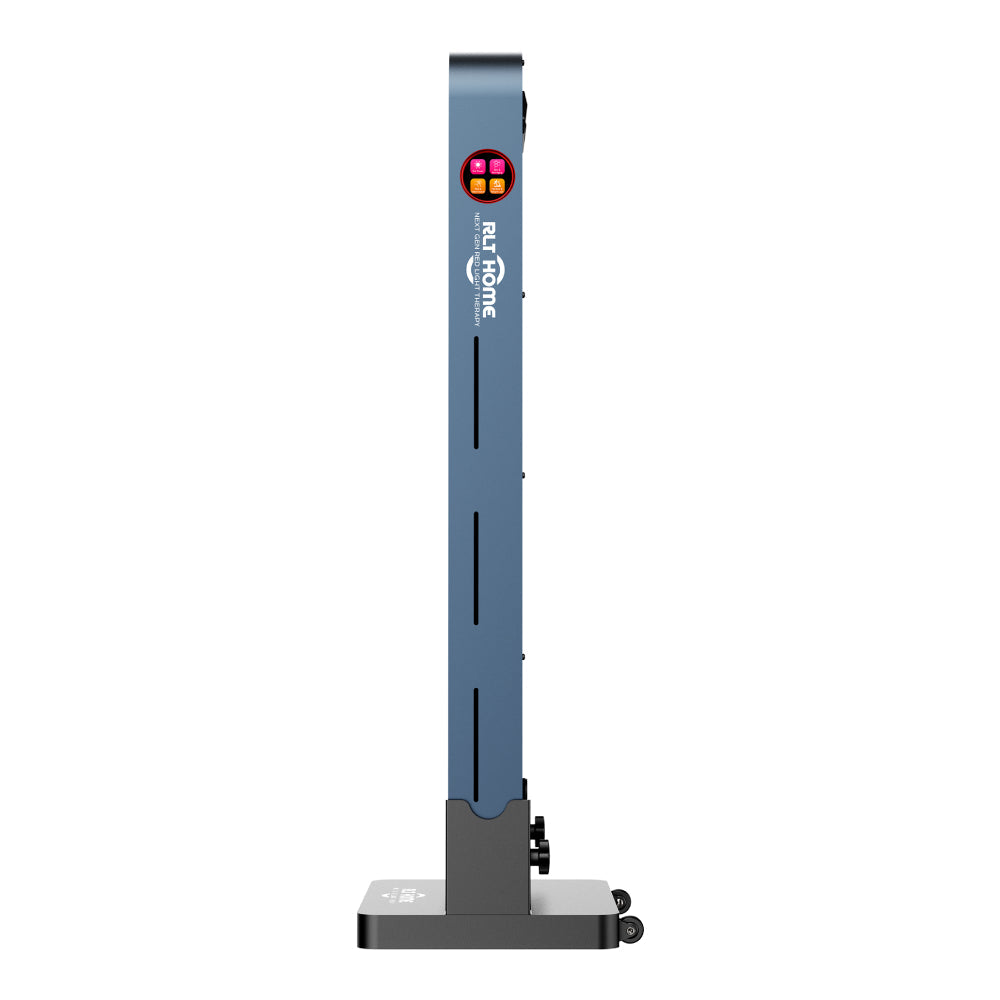

| Panel | 30.3 × 11.8 × 2.6 in · 22 lb · aluminum housing, stand included |
| Shipping | Box 33 × 15 × 7 in · 26.5 lb |
| Power & certifications | |
| Electrical | AC 100–240V · 280W |
| Certifications | FDA Registered · CE · RoHS |
| In the box | |

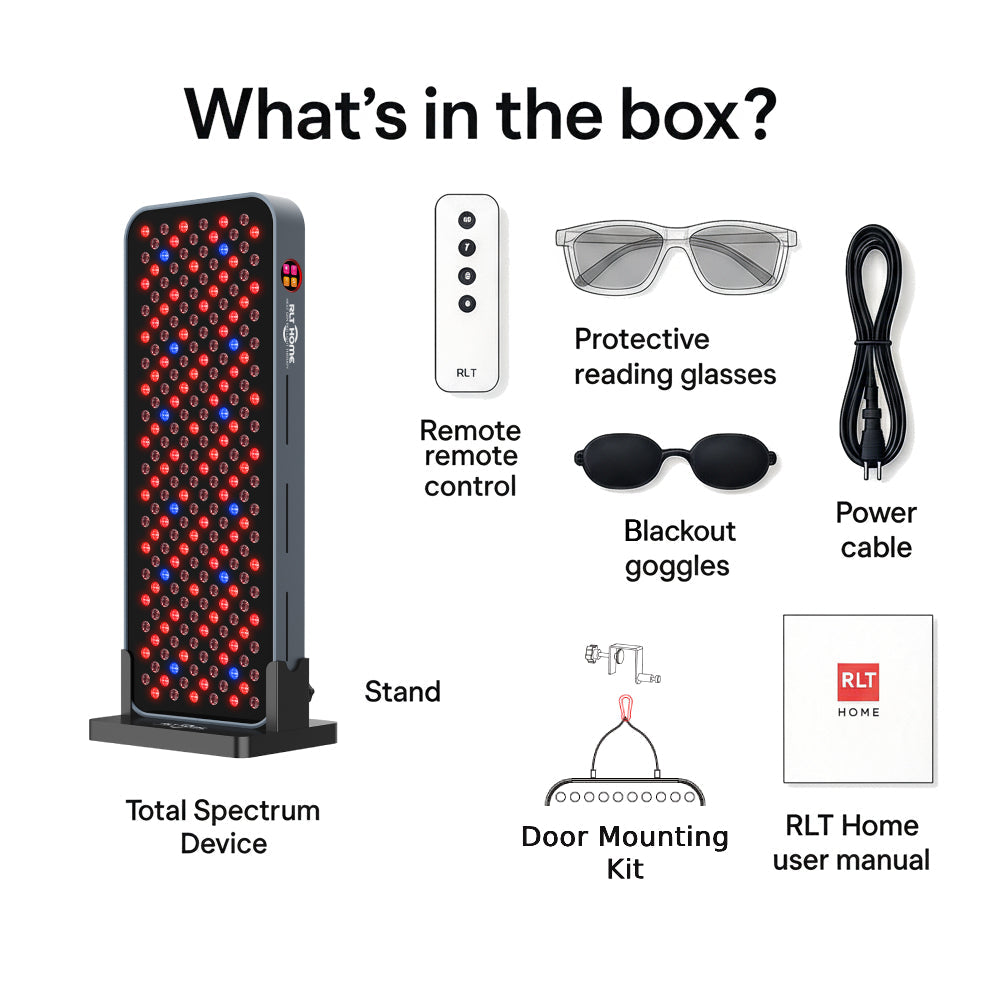

| Includes | Total Spectrum COMPACT panel, stand, remote control, protective reading glasses, blackout goggles, power cable, user manual |
Before You Buy
Installation

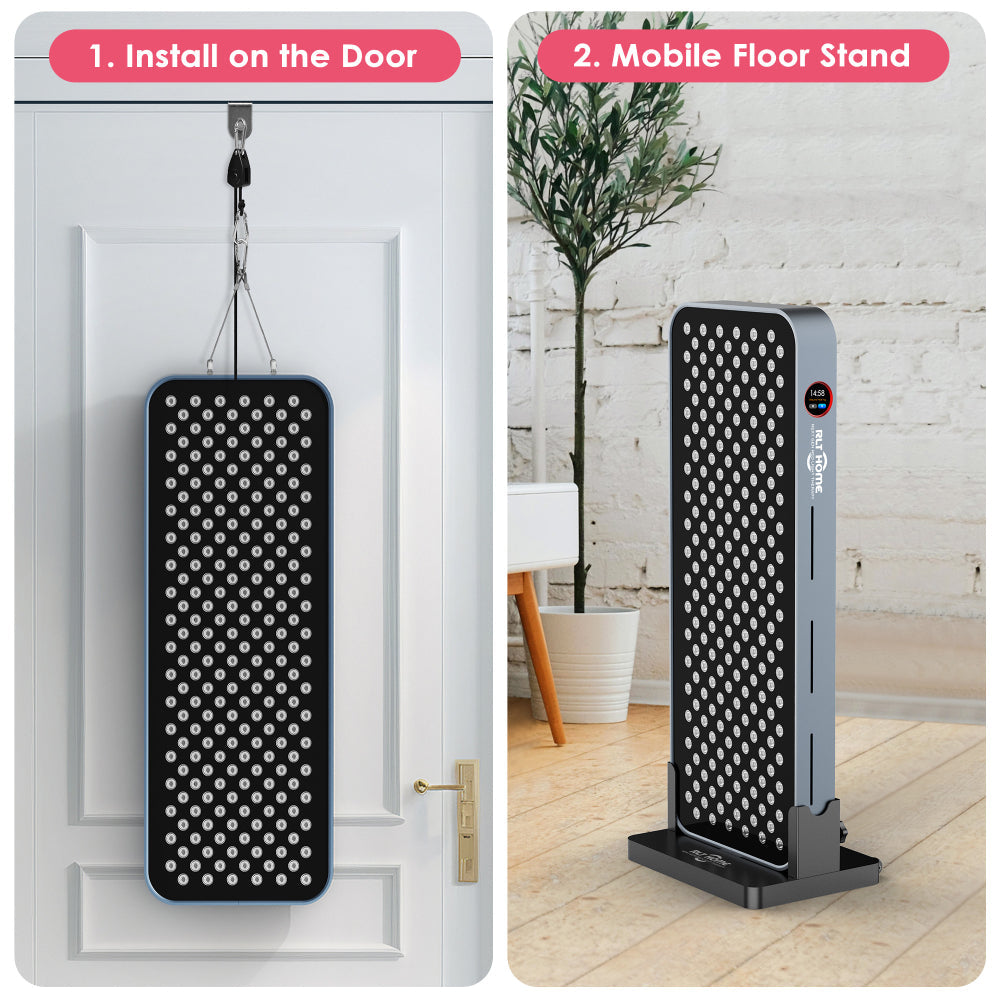

Setup takes minutes: position the panel with its included stand, plug the power cable into a standard household outlet, and choose a mode from the touch panel or remote. It runs on any voltage worldwide, and there are no apps, subscriptions, or accounts — ever.
Shipping & Delivery
Free, fully insured U.S. shipping from the manufacturer's warehouses in California and Georgia.
Warranty
3-year manufacturer warranty.
Returns
Returns are accepted within 30 days of delivery for items that are unused and in their original packaging. Return shipping is at the customer's expense and a 15% restocking fee applies. Email hello@aurelinewellness.com to start a return.
Safety Information
Use the included eyewear during sessions and don't look directly into the LEDs. The Total Spectrum COMPACT is a general wellness device — it is not intended to diagnose, treat, cure, or prevent any disease or medical condition. If you have a medical condition, are pregnant, take photosensitizing medication, or have any concern, consult your physician before use.
Frequently Asked Questions
Which areas is the COMPACT best suited to?
It's sized for medium zones — the back, shoulders, chest, hips, or legs — covered from one position. For face-and-hands work at a desk, the MINI is the more natural fit; for head-to-toe sessions in one pass, look to the ULTRA or ELITE.
How is seven wavelengths different from a standard red light panel?
Most panels carry one or two wavelengths. The COMPACT layers seven, each reaching a different depth — blue at the skin's surface, visible red just beneath it, near-infrared into muscle and joint tissue, and 1064 nm deepest of all — so a single session covers every layer at once.
How long is a session?
Most people settle into 10–20 minutes per target area, a few times per week. The included RLT Home user manual has guidance for specific goals, and the preset modes handle timing for you.
Can the whole household use it?
Yes. There are no accounts or app profiles — anyone can pick a preset from the touch panel or remote, and the custom mode lets each person dial in their own intensity and pulsing.
Does it need a special outlet?
No — it plugs into any standard household outlet and accepts any voltage from 100 to 240V.
What if I need assistance after delivery?
Email hello@aurelinewellness.com and we'll help with setup, use, or warranty questions.
